Fiber Laser Pipe Tube Cutting Machine Cnc Laser Pipe Cutter Manufacturers_Huamai
Max. Processing Dia.: 600mm
Max. Speed: 80m/min
Laser Power: 1000-60000W
Fiber laser pipe cutter is a device that uses fiber laser technology to cut metal pipes. With efficient fiber laser and flexible machine structure, the required cutting graphics are input into the control system through professional programming software. Used to cut holes, grooves, patterns of various types of pipes; It can perform steel pipe cutting processing, cut various shapes on the surface of square pipes, cut square and waist shaped holes on round pipes, and cut oblique end faces at the ends of round pipes.
| Model | HM6024PT | HM6035PT | HM12052PT | HM12063PT |
| Round tube cutting range | φ10mm-φ230mm | φ20mm-φ350mm | φ50mm-φ500mm | φ150mm-φ600mm |
| Square tube cutting range | 10mm-230mm | 20mm-350mm | 50mm-500mm | 150mm-600mm |
| Max. Weight of cutting pipe | 400KG | 600-1200KG | 1800KG | 3000KG |
| Route （X/Y/Z axis） | 350/6020/300mm | 500/6020/300mm | 750/12500/350mm | 950/12500/400mm |
| Max. Speed of chuck | 80r/min | |||
| Max. Speed of single axis empty movement | 80m/min | |||
| Max. Acceleration of singleaxis empty movement | 0.5G | |||
| Max. acceleration of cutting | 0.5G | |||
| Repositioning Accuracy | ±0.05mm | |||
| X/Y/Z axis Positioning Accuracy | ±0.03mm | |||
| Laser power | 1000-60000W | |||
|
|

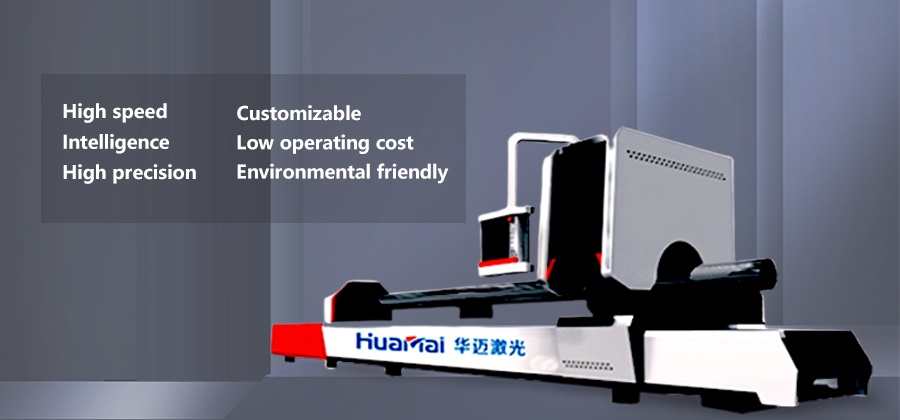

Product Description
Fiber laser pipe cutting machine is a device that uses fiber laser technology to cut metal pipes. With efficient fiber laser and flexible machine structure, the required cutting graphics are input into the control system through professional programming software. The laser head will irradiate the pipe along a preset path, causing the material to quickly melt or evaporate, thus achieving precise cutting. Used to cut holes, grooves, patterns, etc. of various shapes and sizes on various types of pipes; It can perform steel pipe cutting processing, cut various shapes on the surface of square pipes, cut square and waist shaped holes on round pipes, and cut oblique end faces at the ends of round pipes; It can also cut the end of the intersection line between the branch pipe and the circular main pipe, as well as cut the end of the cylindrical intersection line at the end of the branch pipe.

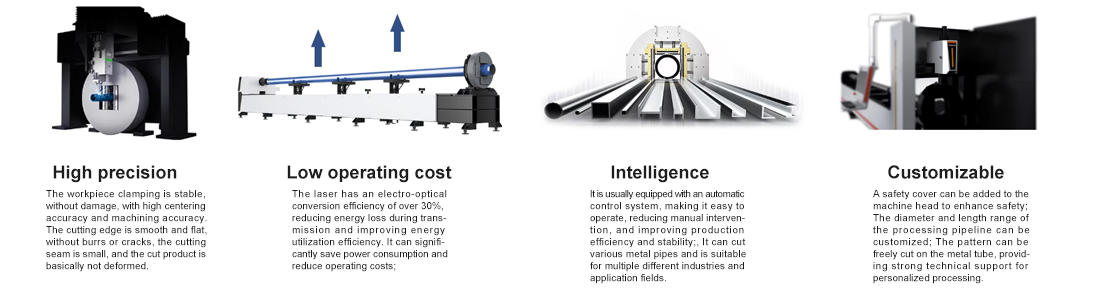

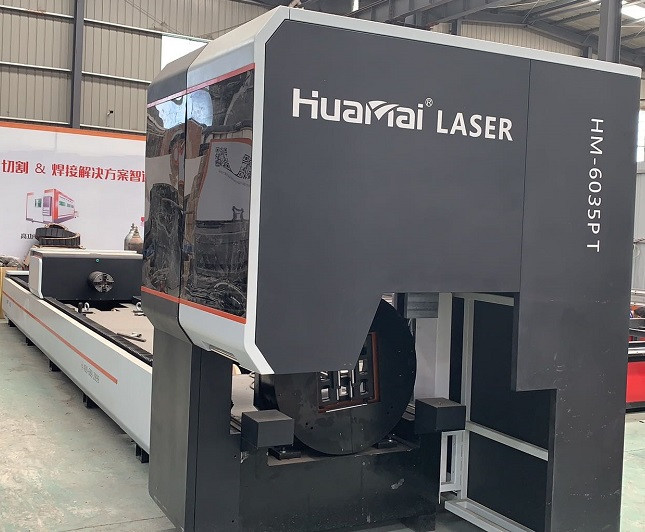

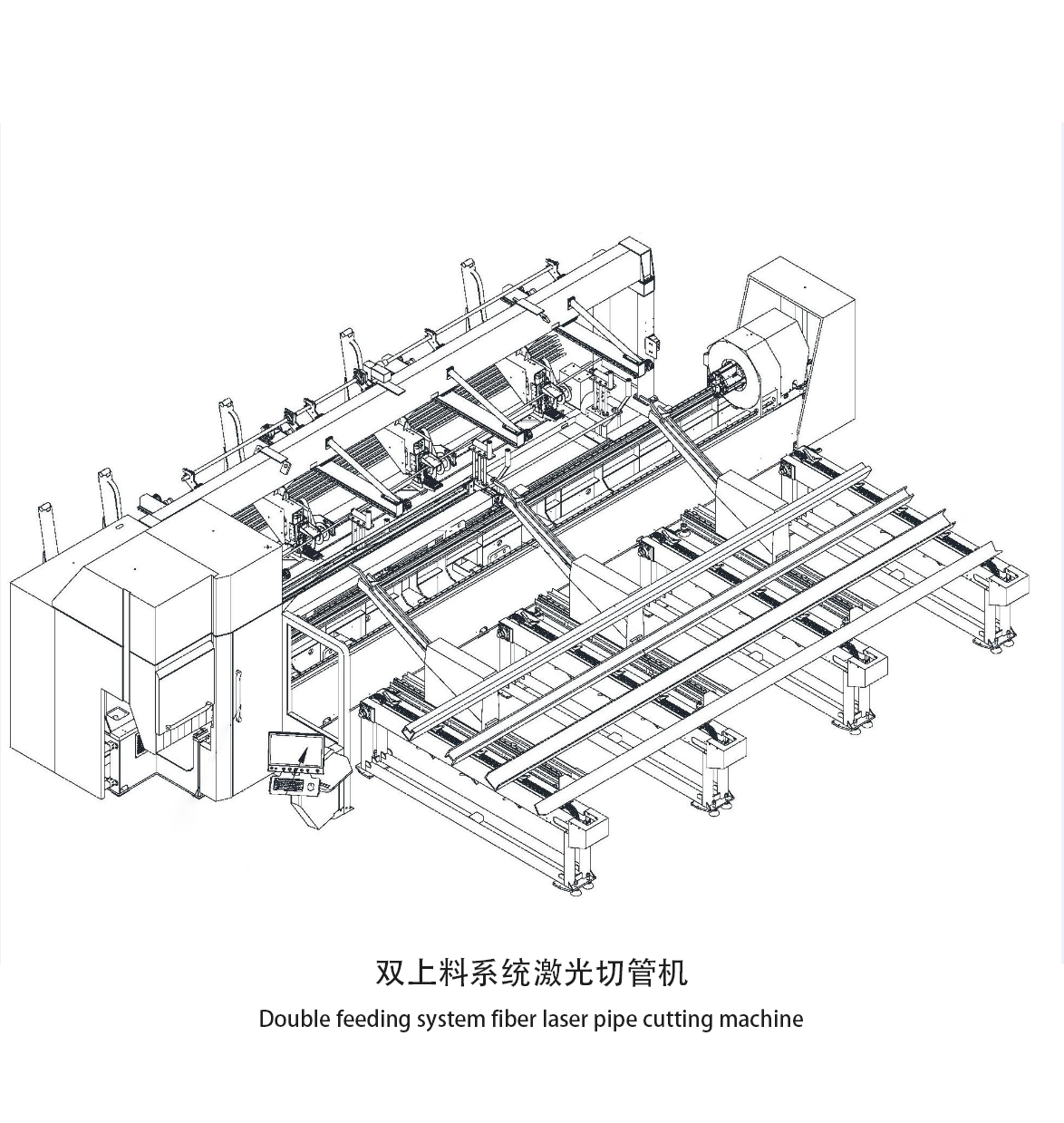

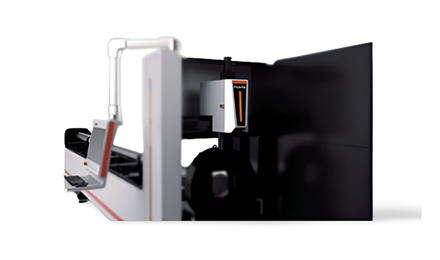

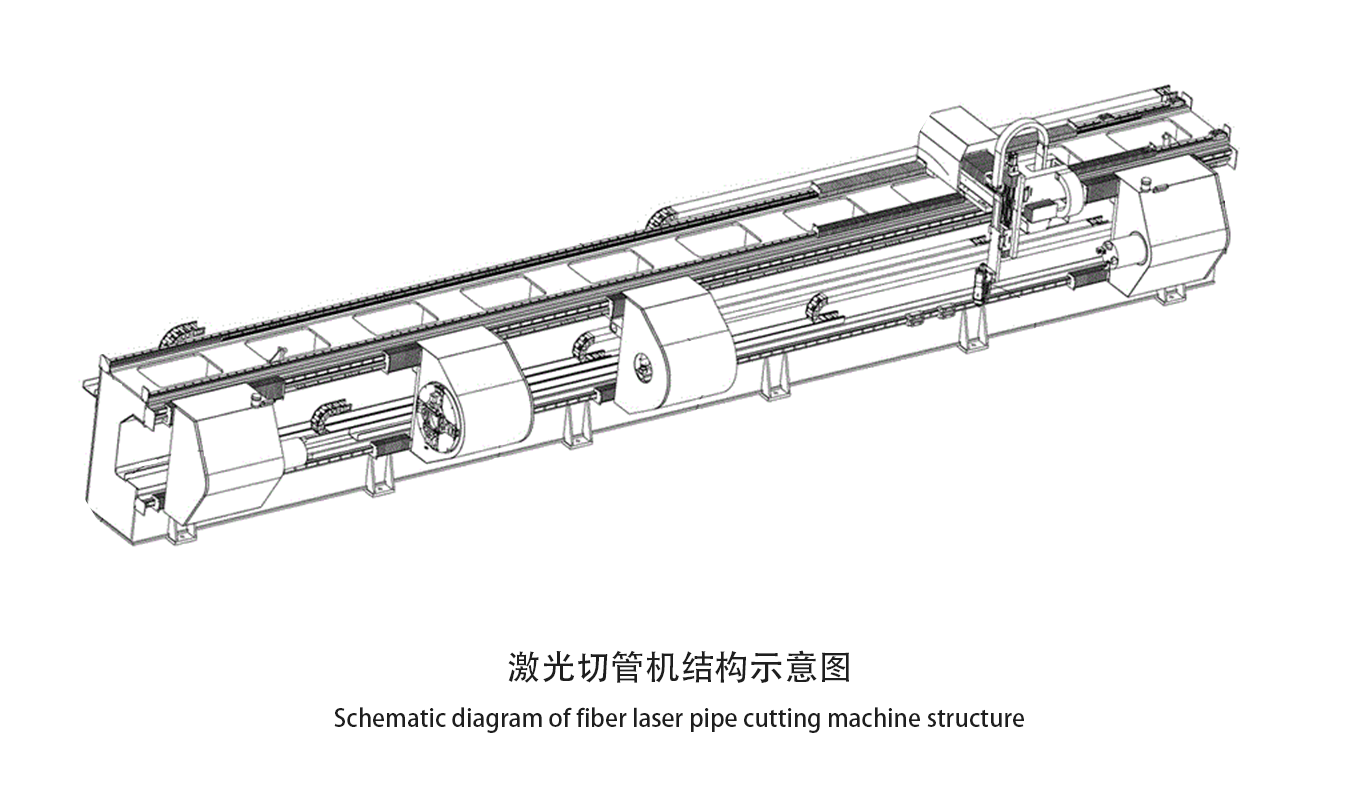

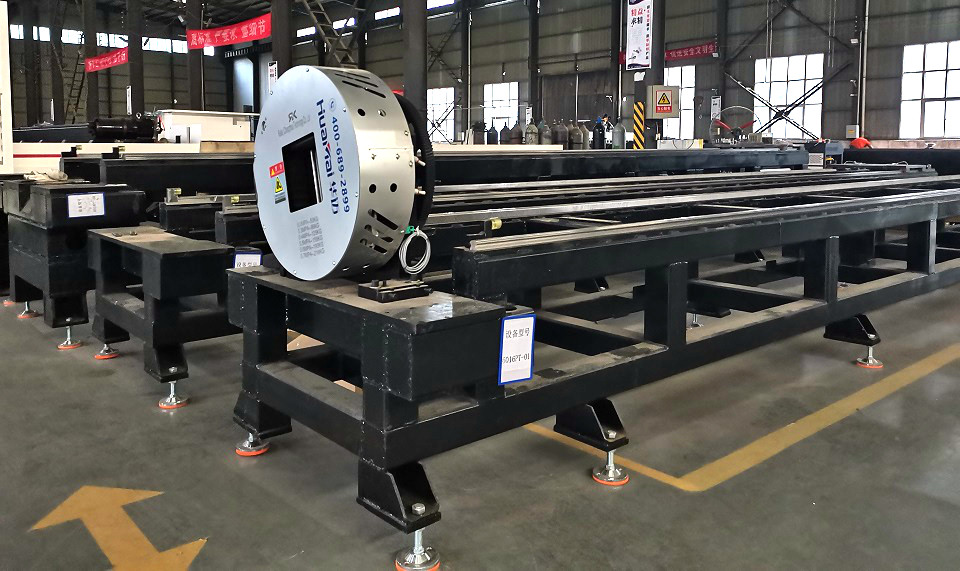

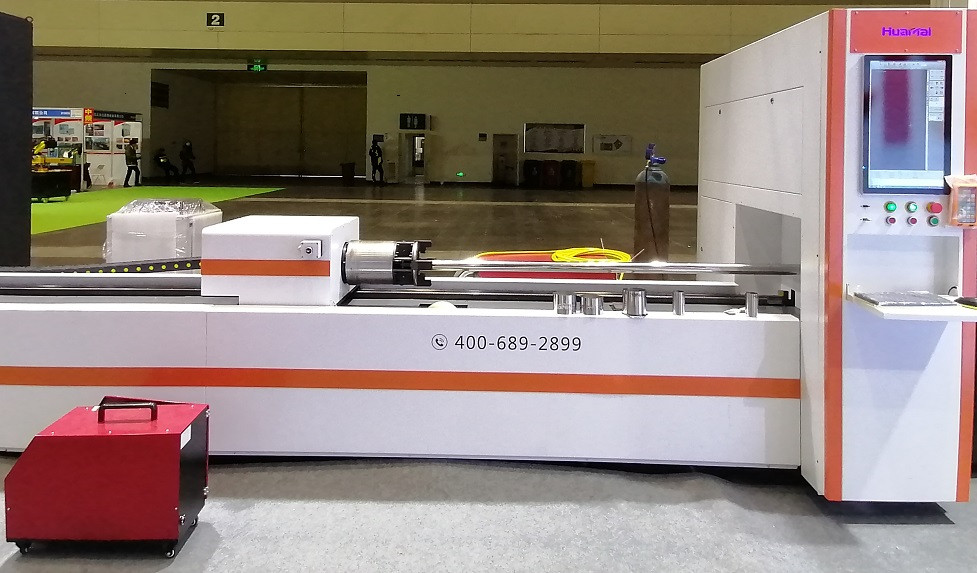

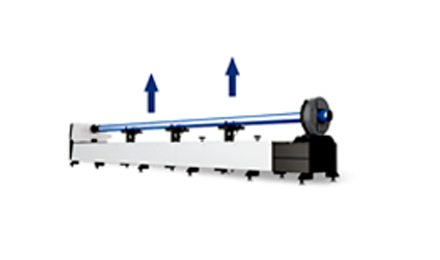

Product Details

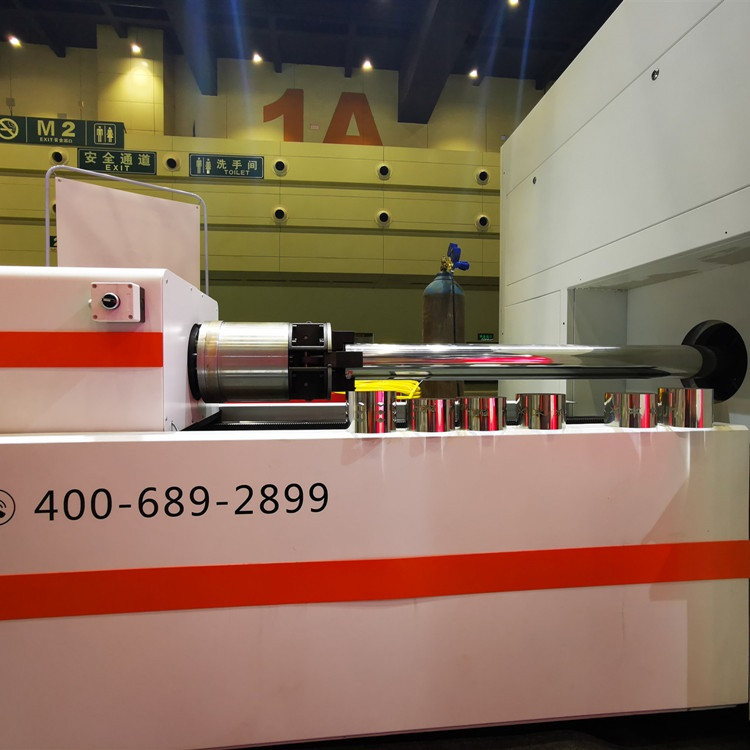

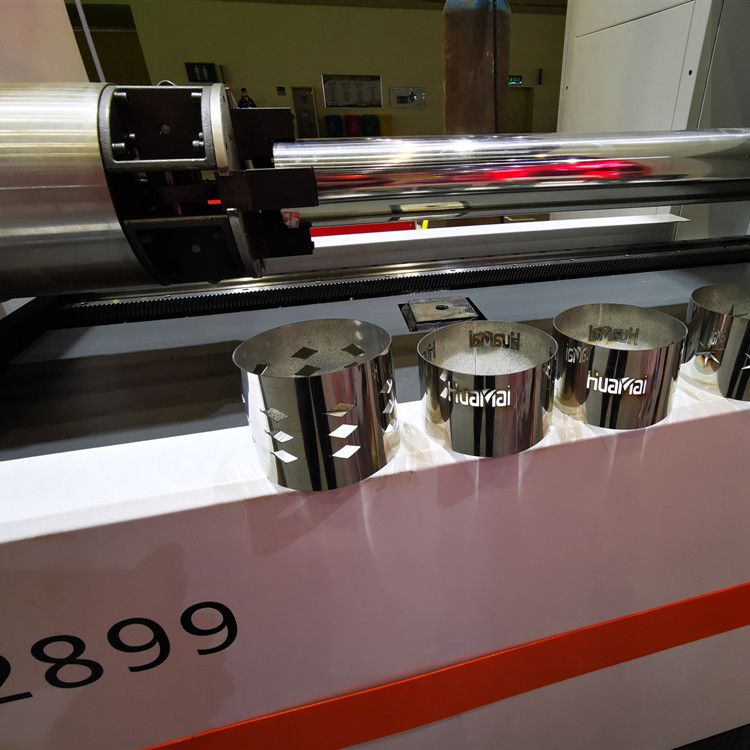

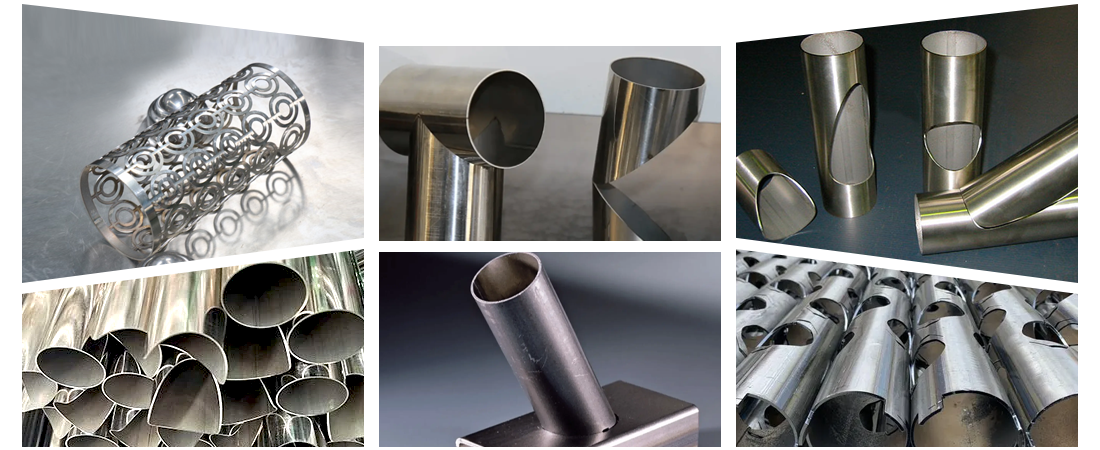

Sample Display
Application Scenarios

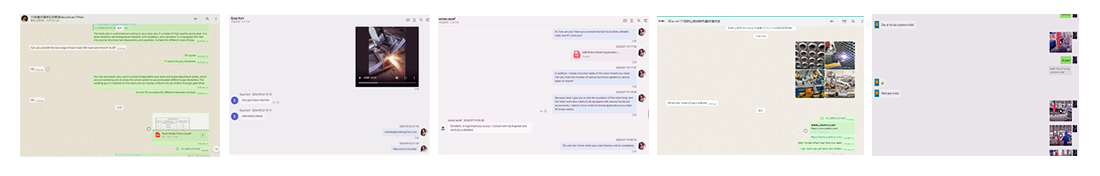

After sales response
How to choose a suitable Fiber Laser Pipe Cutting Machine?
1. Confirm cutting requirements: Determine the size (diameter, wall thickness, length, etc.) and material (such as stainless steel, carbon steel, aluminum alloy, etc.) of the pipe to be cut, as well as the cutting process to be performed (such as cutting, drilling, oblique cutting, intersecting line cutting, etc.). At the same time, possible changes in processing demands in the future should also be considered.
2. Match processing capability: According to the diameter of the pipe, it can be divided into large (chuck above 220), medium (chuck between 120-220), and small (for pipes below 60mm) laser cutting machines. According to the degree of automation, there are types such as fully automatic, semi-automatic, and manual feeding. Choose the appropriate laser cutting capability and automation level based on daily processing volume.
 |  |  |
3. Determine cutting gas: Understand the cutting gases applicable to the equipment (such as air, nitrogen, oxygen, etc.), as well as the requirements for gas purity (such as nitrogen purity reaching 99.999%), to ensure the provision of suitable cutting auxiliary gases.

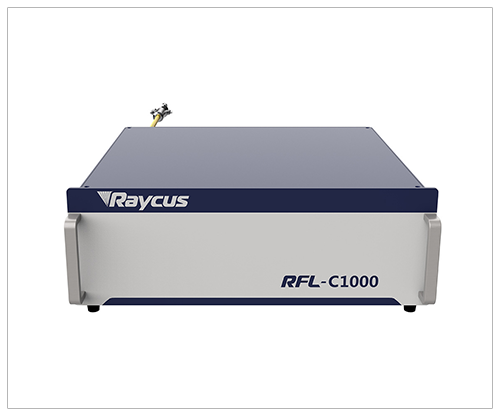

4. Equipment quality: Pay attention to product configuration, such as the quality and performance of core components such as fiber lasers (such as German IPG lasers), control systems, cutting heads, etc.
|
|
|
|

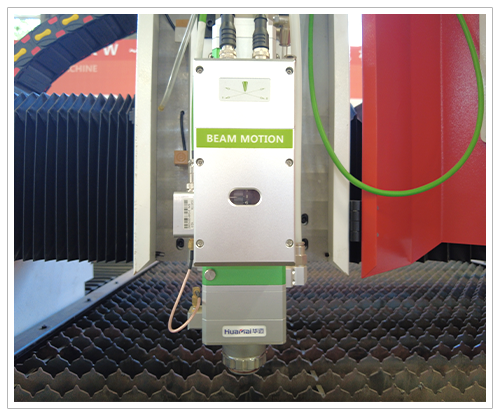

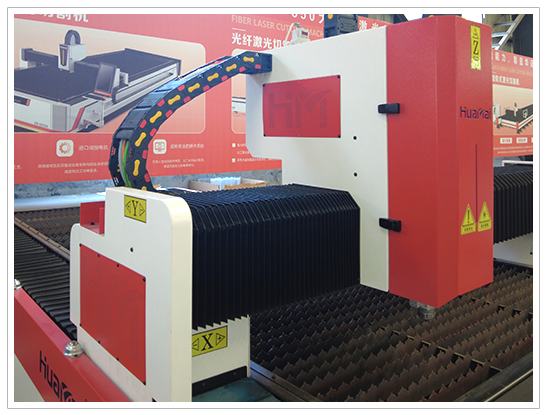

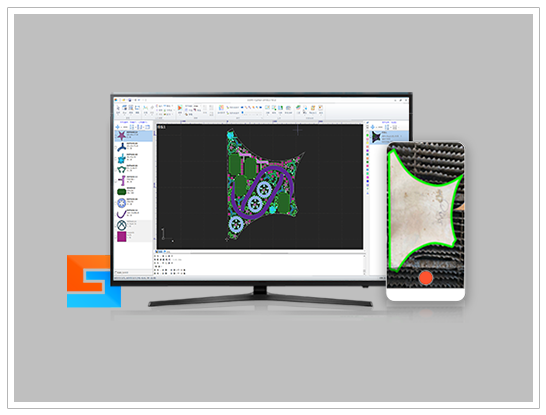

| Laser Cutting Head | XYZ Axis | Control System | Fiber Lasers |
5. Price: Do not simply pursue low prices to avoid falling into the trap of poor quality, but also choose cost-effective equipment based on your own budget, considering the balance between equipment performance, configuration, and price.
6. On site inspection and sampling: If possible, you can go to the
manufacturer for on-site inspection to understand their production scale
and actual situation. Before purchasing, it is best to have the
manufacturer make a sample to observe whether the cutting effect meets
the requirements, including cutting accuracy, cutting surface quality,
and the presence of burrs.
7. After sales service: Understand the manufacturer's after-sales service capabilities, including response time, problem-solving efficiency, etc. Good after-sales service can solve problems in a timely manner during equipment use and reduce losses.
Certificate
Pre sales service
Based on user needs, provide practical technical advice and corresponding product information from the user's perspective to answer and solve various questions raised by users. From a technical feasibility perspective, assist users in developing processing plans, provide processing equipment for on-site visits and inspections, sampling and testing, etc.
In sales service
Provide users with a complete set of product operation manuals for their processing sites, conduct on-site inspections, assist users in planning and designing production sites, as well as equipping water, electricity, and gas according to the actual situation on site, and provide technical training for user operators.
After-sale service
The equipment arrives at the user's installation and commissioning site, and further training is provided to the user's operators, which is synchronized with installation and commissioning to ensure that the operators are proficient in the equipment operating procedures and fully put into production. Our company will send engineering and technical personnel to the user site irregularly every year for technical patrols, routine maintenance and inspection of equipment, answering technical questions raised by users, and providing upgrade training for user operators.
Packaging And Phipping
Every choice you make is a recognition and encouragement to us. Professional packaging, fast shipping, quality and speed coexist.
Exhibition
Huamai Company always adheres to the business philosophy of "building a brand through quality and winning the market through brand". Continuously innovating and developing, committed to creating a world brand of national intelligent equipment, the company has participated in various exhibitions and received enthusiastic responses from market customers.
Customer visits
Huamai Intelligent Technology has always adhered to the principle of common development and growth with customers, and has established stable and good cooperative relationships with distributors and end customers in various regions at home and abroad. We welcome new and old customers to come and cooperate.
