Max.Processing Thickness: 8mm
Welding Gap Requirements: ≤0.5m
Laser Power: 1000-3000W

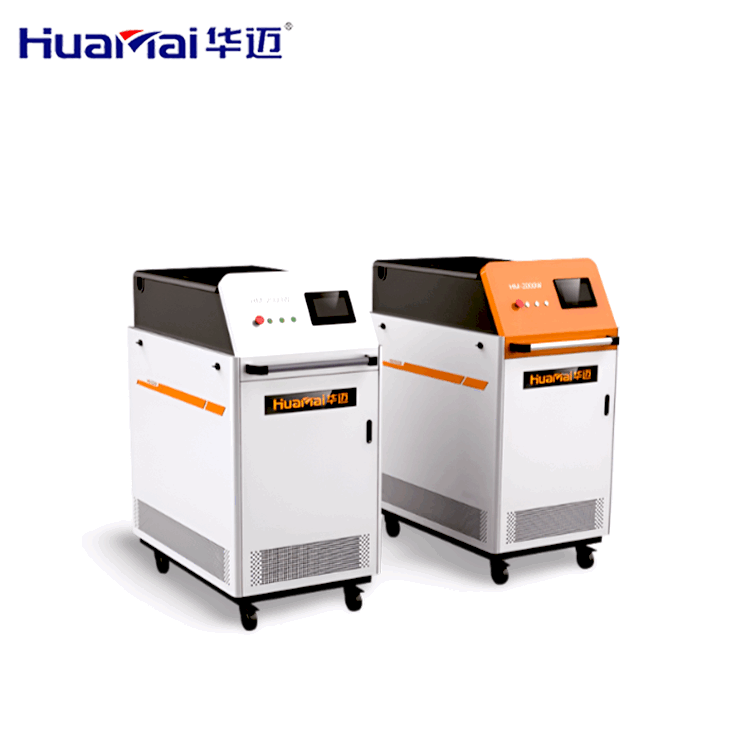

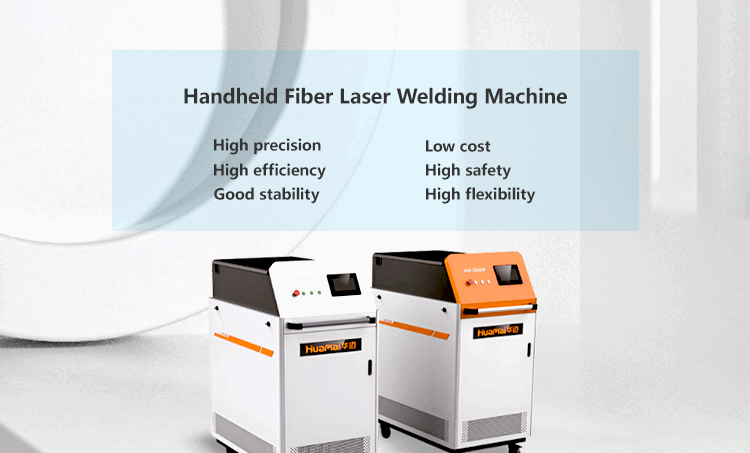

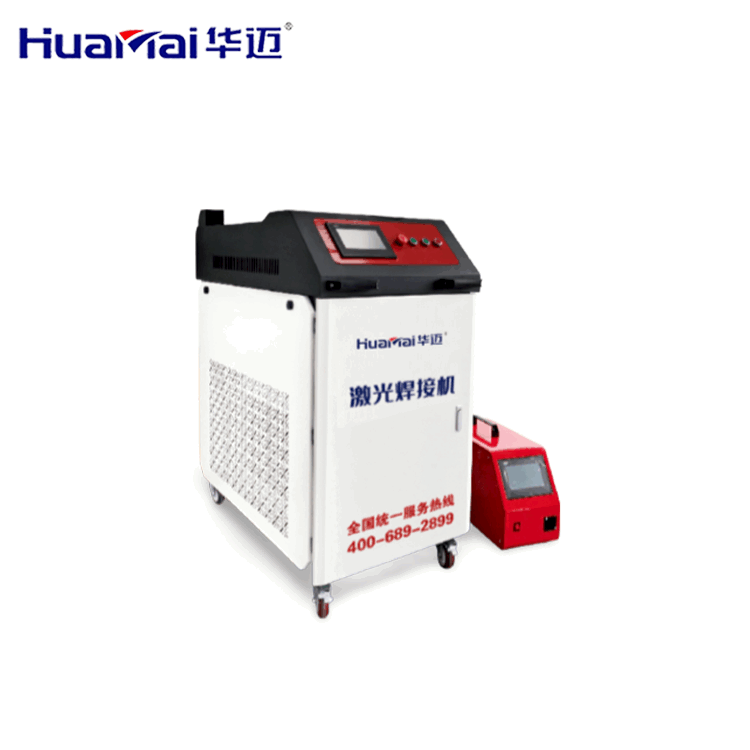

Handheld fiber laser welding machine is a non-contact and portable laser welding equipment. It uses a high-power density laser beam as a heat source and directly irradiates the material surface through a handheld welding gun, locally heating the material to melt it internally, and then cooling and crystallizing to form a weld seam.
Model | Handheld Fiber Laser Welding Machine |
(L*W*H) Size | 1060*650*1150mm |
Laser Power | 1000/1500/2000/3000W |
Wavelength of Laser | 1080±5nm |
Available Fiber Length | Standard 10m, customizable 5m and 15m |

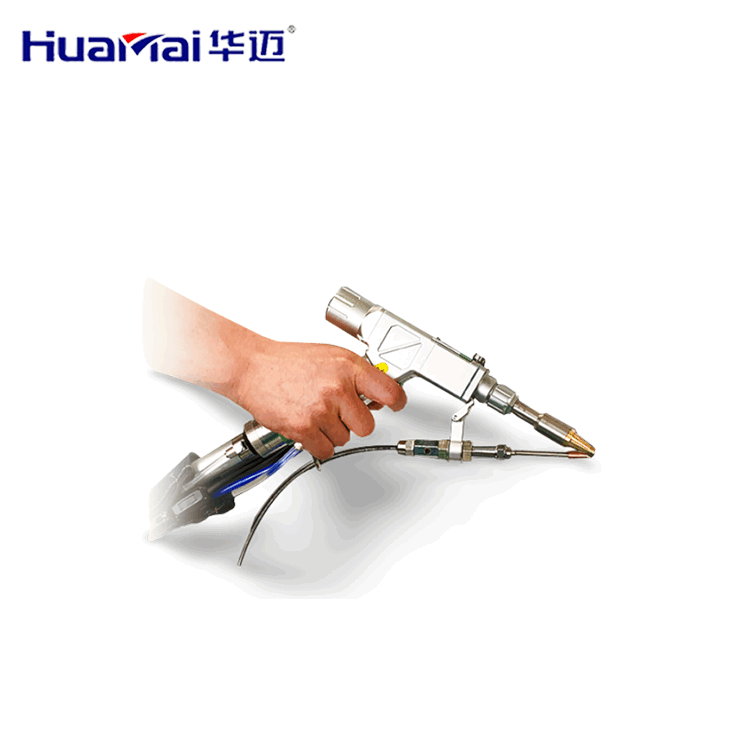

The Welding Head | WOBBLE Swing welding head (optional wire filling device); Weight: 0.6KG |
Working Mode | Continuous/Pulse |
Welding Gap Requirements | Swing welding≤0.5m; Swinging wire filling welding≤1mm |
Working Voltage | AC 220V/380V, 50Hz/60Hz |
Shielding Gas | N2/Ar2 |
Suggested Welding Thickness | 1000W: Stainless steel, carbon steel≤2mm; galvanized sheet, aluminum≤1.5mm 1500W: Stainless steel, carbon steel≤3mm; galvanized sheet, aluminum≤2mm 2000W: Stainless steel, carbon steel≤5mm; galvanized sheet, aluminum≤3mm 3000W: Stainless steel, carbon steel≤8mm; galvanized sheet, aluminum≤4mm |

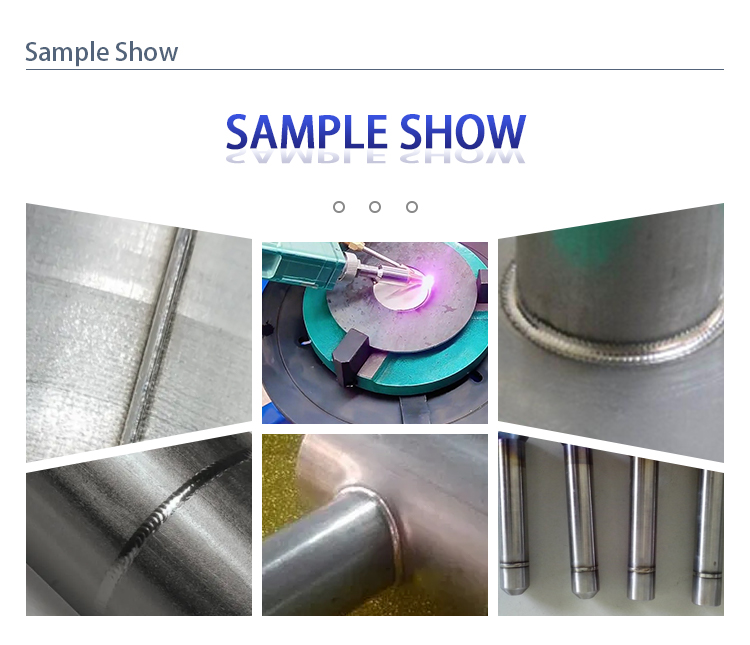

Application Materials: Stainless steel, carbon steel, galvanized sheet, aluminum and aluminum alloys, copper and copper alloys, gold, silver, chromium, nickel, titanium, titanium alloys, tantalum, tin, zinc.
Q:How can I get the best machine for me?
A:You can tell us the materials and details you need to process through photos or videos, and we will recommend the most suitable products for you according to your needs and our experience.
Q:How to operate the machine?
A:We will send you manual and guide vedio in English, it can teach you how to operate the machine.If you still can not learn how to use it,we can provide 24 hours online service.
Q:What should I do If some problems happen to this machine during warranty period?
A:During the warranty period, our technicians will help you diagnose the cause of machine failure.And we can send free parts to you in warranty period if machines have any problem .
Q:Does the machine can be customized?
A:Yes,mechanical color, appearance, logo, etc. can be customized according to your needs.
Q:How long is the delivery time?
A:For standard machines, it would be 10-12 working days; For non-standard machines and customized machines according to client's specific requirements, it would be 15 to 30 working days.
Our products sell very well in domestic market and are exported to Korea, Southeast Asia, the Middle East, Africa, Europe and the United States.
